CY2100900900
CY TECH
Telecom
IP55, NEMA 4/NEMA 4X
Floor Mount
1500W/5100BTU
19inch, 23inch
800mm/32inch
42U
| Name | Technical Parameter |

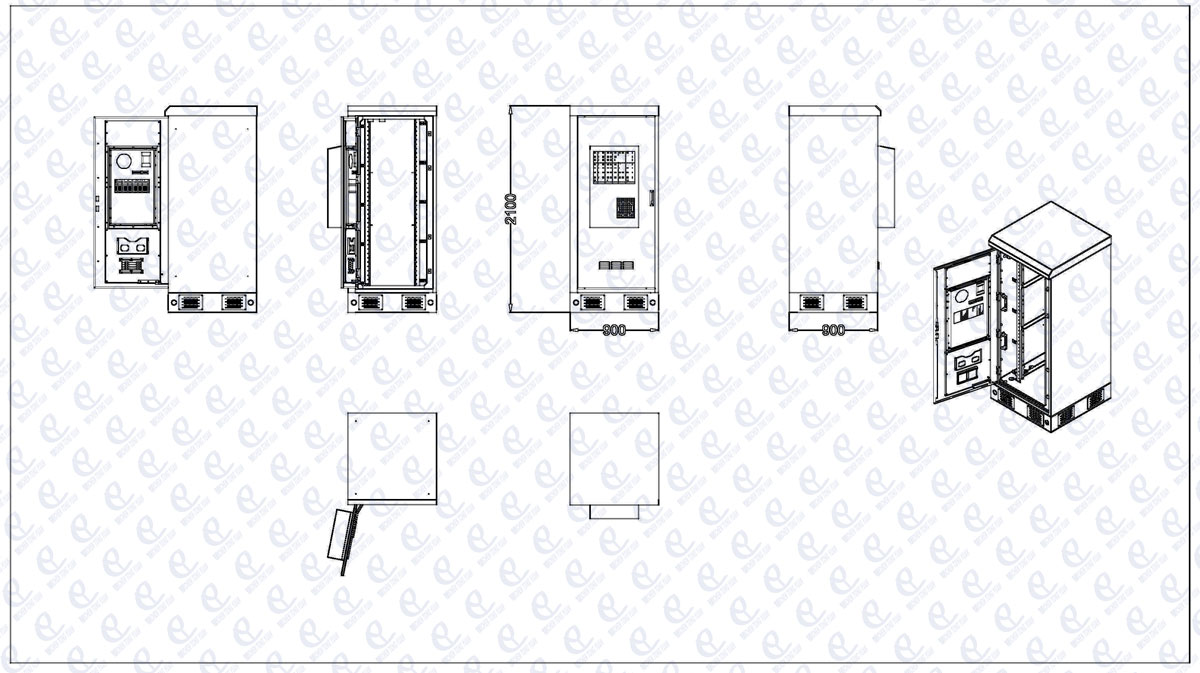

| External Size | H*W*D=2100*900*900mm ( 83 x 35 x 35 inch) |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55,NEMA 4 or 4X |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | H*W*D=2100*900*900mm ( 83 x 35 x 35 inch) |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:1500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
